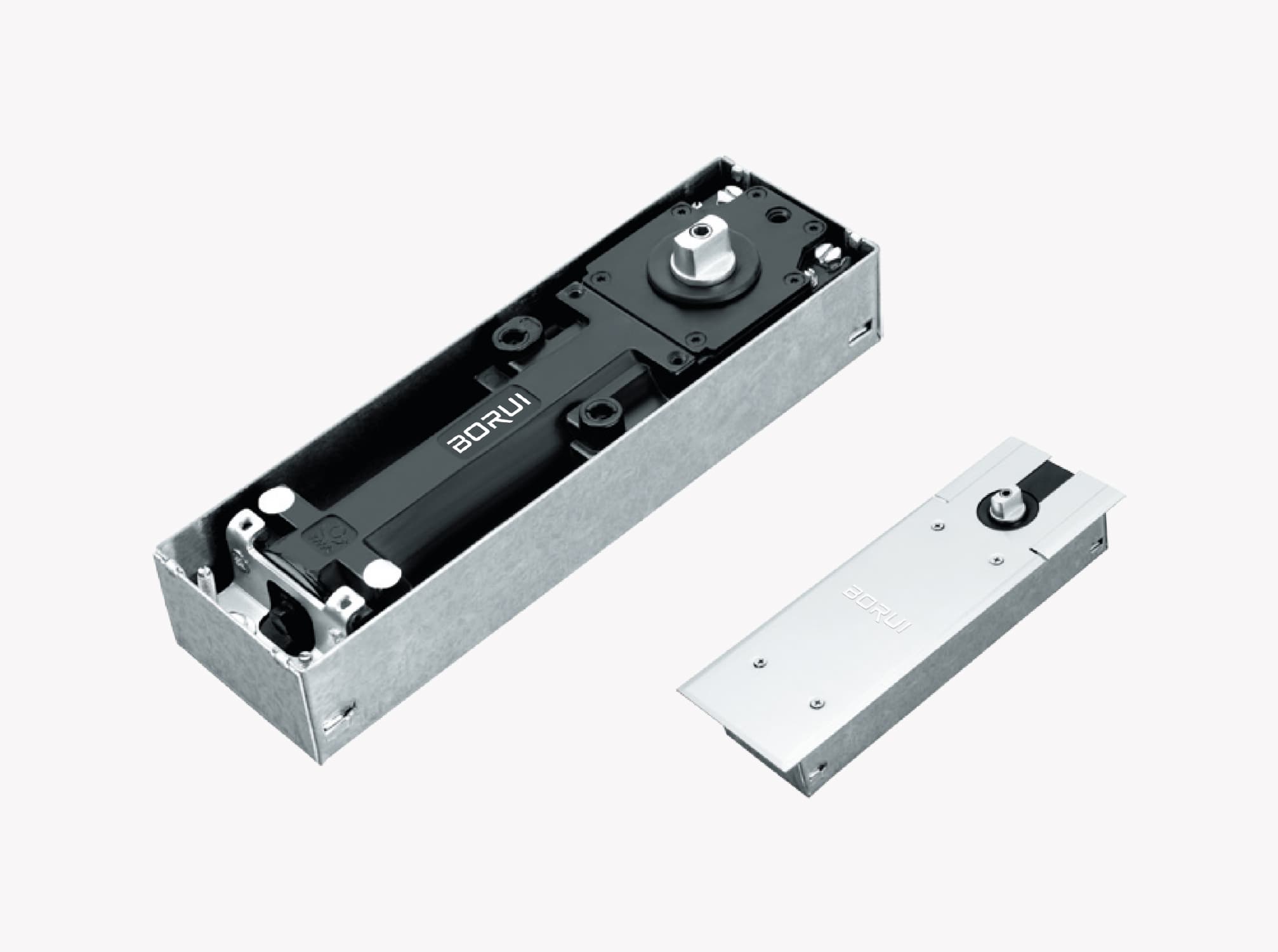

FS-1400 Floor Spring, 150kg Load, 175° Max Opening for Glass Door
Model: FS-1400
Name: Floor Spring
Capacity: 150kg
Door Width: 1300mm
Operation Cycles: ≥500,000 cycles
Feature: Interchangeable spindle, max 50mm door leaf
lifting, adjustable spring strength, max opening angle
175°, two-stage adjustable closing speed, 90° HO / NHO
optional
FS-1400 heavy-duty floor spring is engineered for glass swing doors with maximum load capacity of 150kg and door width up to 1300mm. It adopts interchangeable spindle design which can lift door leaf up to 50mm, with adjustable spring strength. Tested for over 500,000 operation cycles for long service life. It features two-section adjustable closing & latching speed, maximum opening angle of 175°, with optional 90° hold open or non hold open function. It supports ±3mm front and back adjustment of door leaf. Reliable door control hardware for commercial projects, bulk wholesale and OEM service are available.
