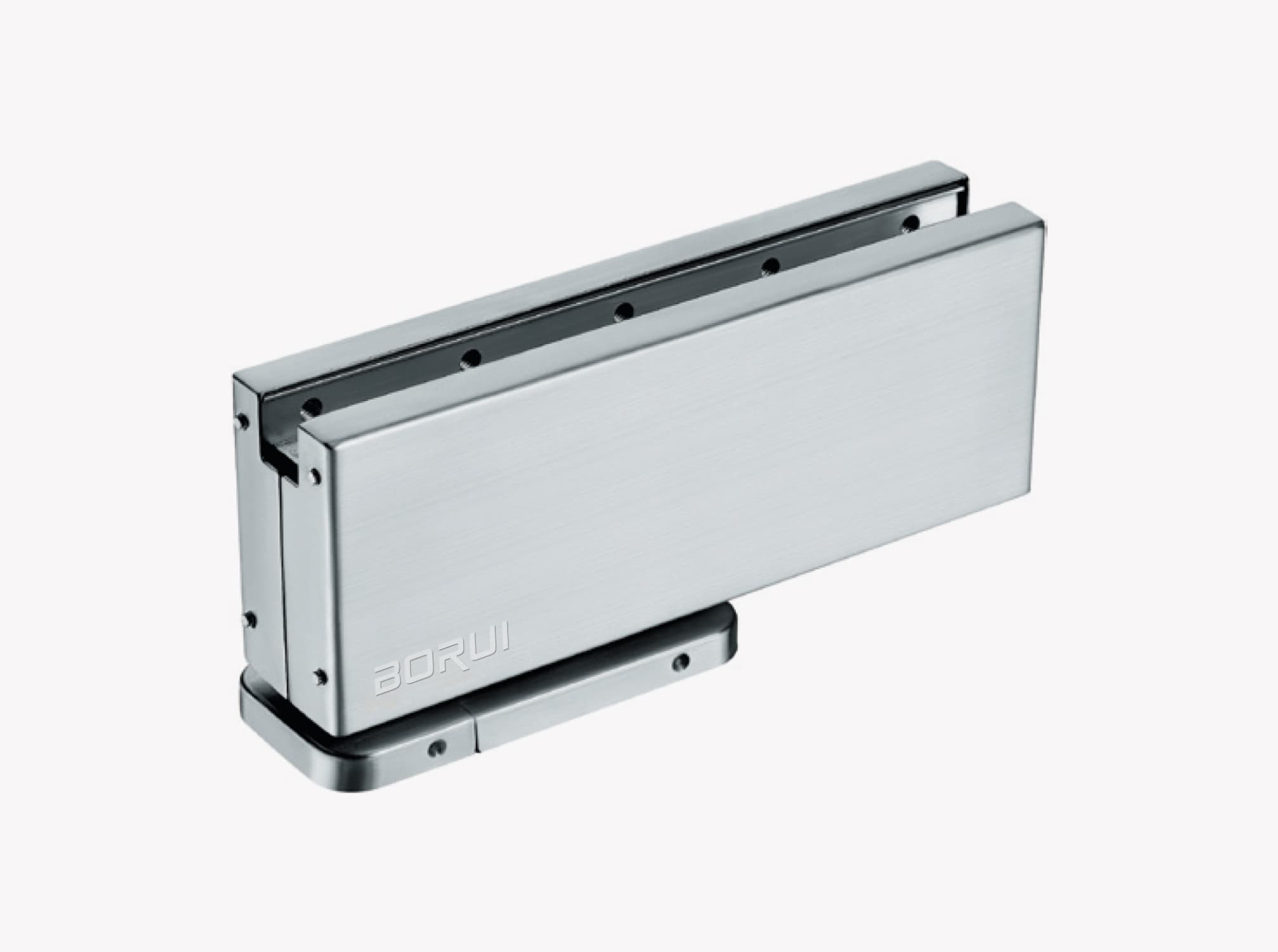

FS-1150 No-Digging Floor Hinge, 100-150kg Max 150° Opening Glass Door Hinge

Model: FS-1150 Name: No-Digging New Floor Hinge Capacity: 100–150kg Max Door Width: 1000mm Applicable Glass Thickness: 8–13mm Operation Cycles: ≥500,000 cycles Feature: No-digging installation; max opening angle 150°; 90° HO / NHO optional; two-stage adjustable closing speed

FS-1150 no-digging floor hinge is a new type floor spring without ground grooving, easy and fast to install. It supports load capacity from 100kg to 150kg, fits glass thickness 8–13mm and max door width 1000mm. Tested for over 500,000 operation cycles for long service life. Equipped with two-section adjustable closing & latching speed, maximum opening angle of 150°, optional 90° hold open or non hold open function. Perfect retrofit hardware for frameless glass swing doors, bulk wholesale and OEM service available.
